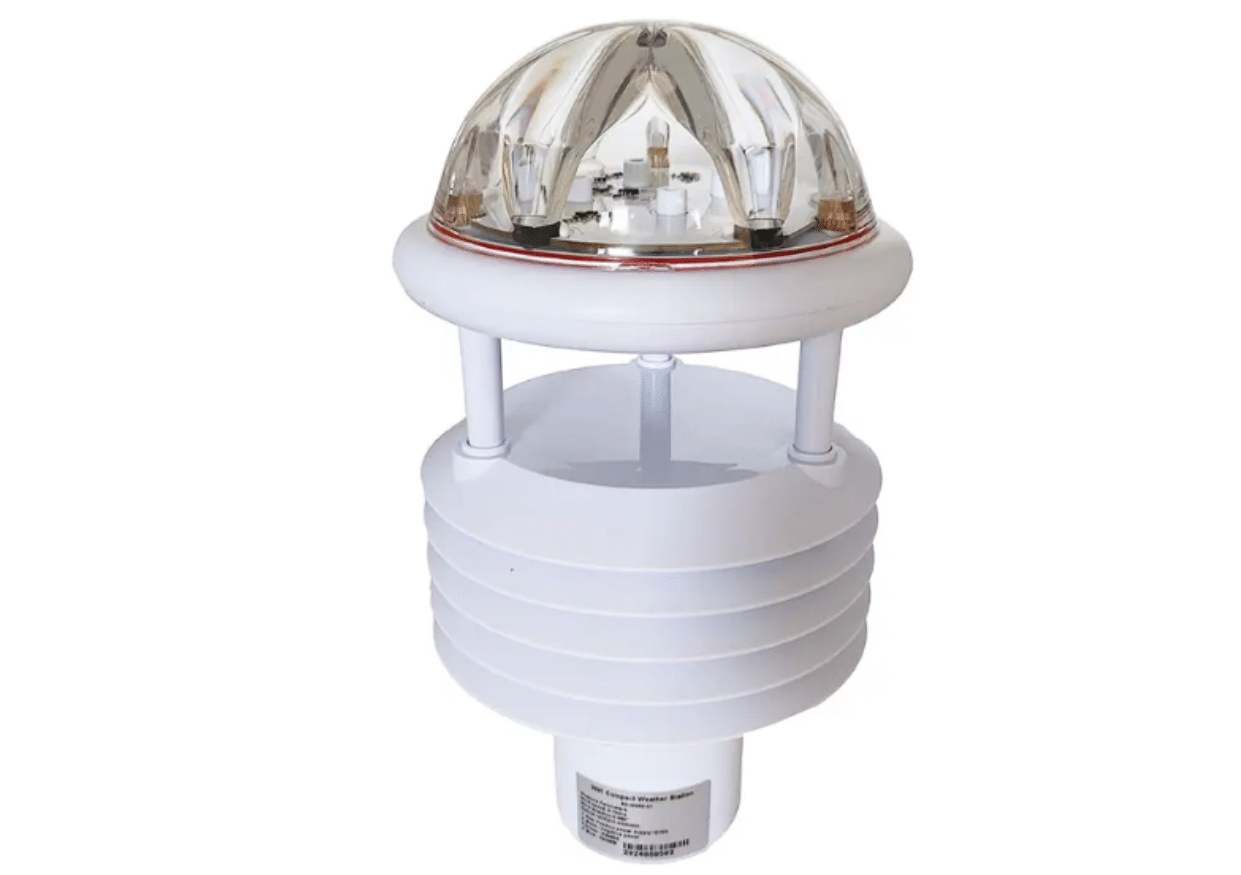

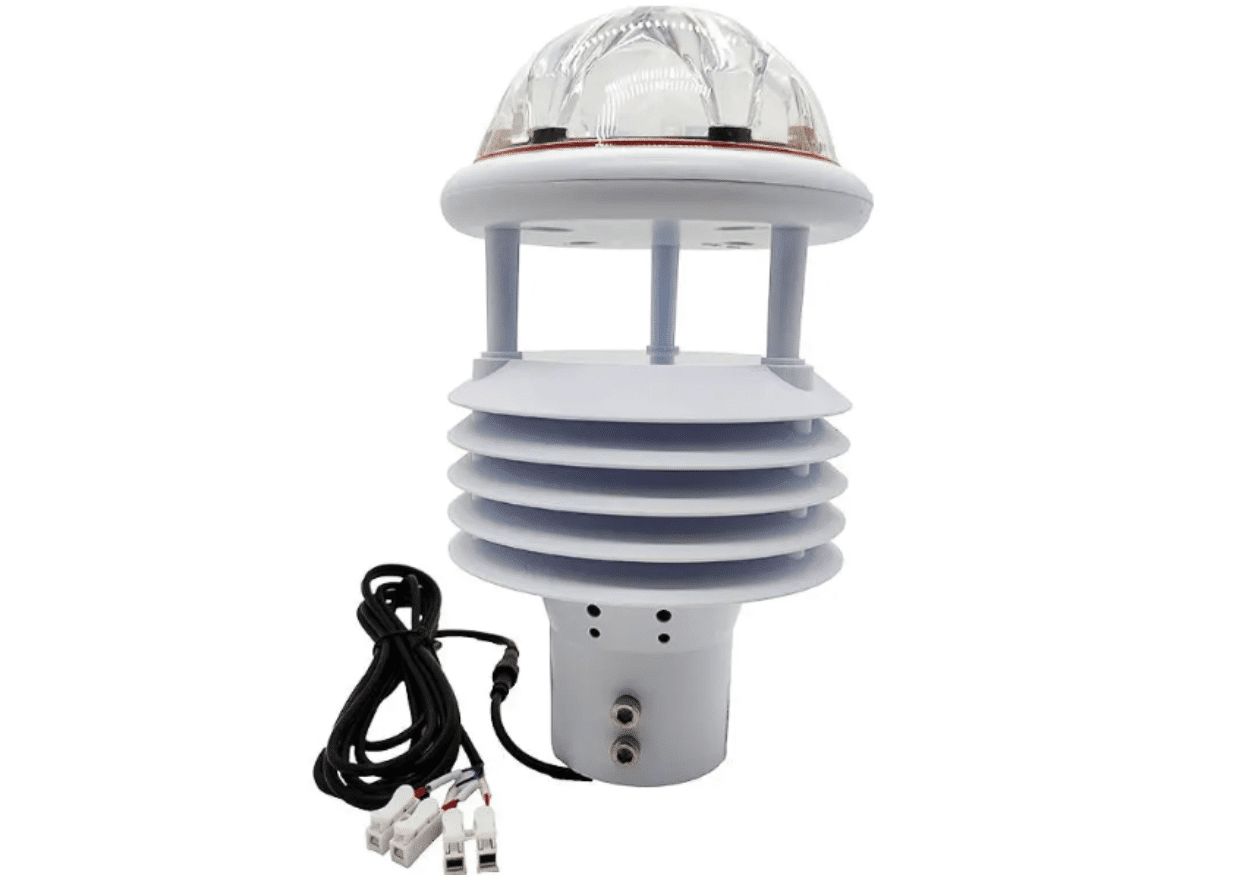

Weather Station
$2,500.00
The Weather Station by Cloudtronics is a reliable tool for monitoring weather and environmental conditions. It measures temperature, humidity, wind, rainfall, UV levels, and soil moisture with high accuracy and shares real-time data through a cloud platform for easy access and alerts. Built to handle tough weather, it offers flexible power options like AC, DC, or solar and can be customized with extra sensors or displays. Perfect for farms, construction sites, and more, this weather station helps you make better decisions and manage operations smoothly.
About product
Product Features
- Hidden Ultrasonic Probe: The ultrasonic probe is embedded in the top cover to prevent interference from rain, snow accumulation, or wind blockage.
- Ultrasonic Technology: Continuous frequency-converting ultrasonic signals detect wind speed and direction by measuring relative phase.
- Integrated Parameters: Measures temperature, humidity, wind speed, wind direction, atmospheric pressure, optical rainfall, and light.
- Real-Time Measurement: Advanced sensing technology ensures instant data collection without minimum wind speed requirements.
- High Stability: Strong anti-interference capability with a watchdog circuit and automatic reset for uninterrupted operation.
- Durable Design: High integration without moving parts ensures zero wear and maintenance-free operation.
- Longevity: Built with ASA engineering plastic, resistant to discoloration and suitable for long-term outdoor use.
- Versatile Output: Standard RS485 communication interface (MODBUS protocol) with optional interfaces such as RS232, USB, or Ethernet for real-time data transmission.

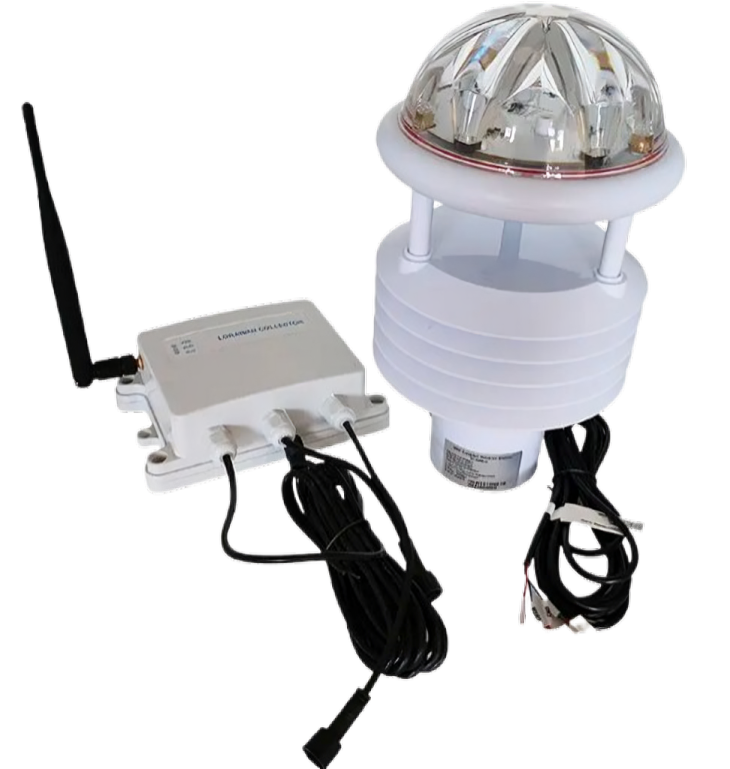

- Wireless Option: Wireless transmission module available with a minimum data update interval of 1 minute.
- Snap-On Probe Design: Ensures secure and precise installation, addressing looseness during transportation or setup.

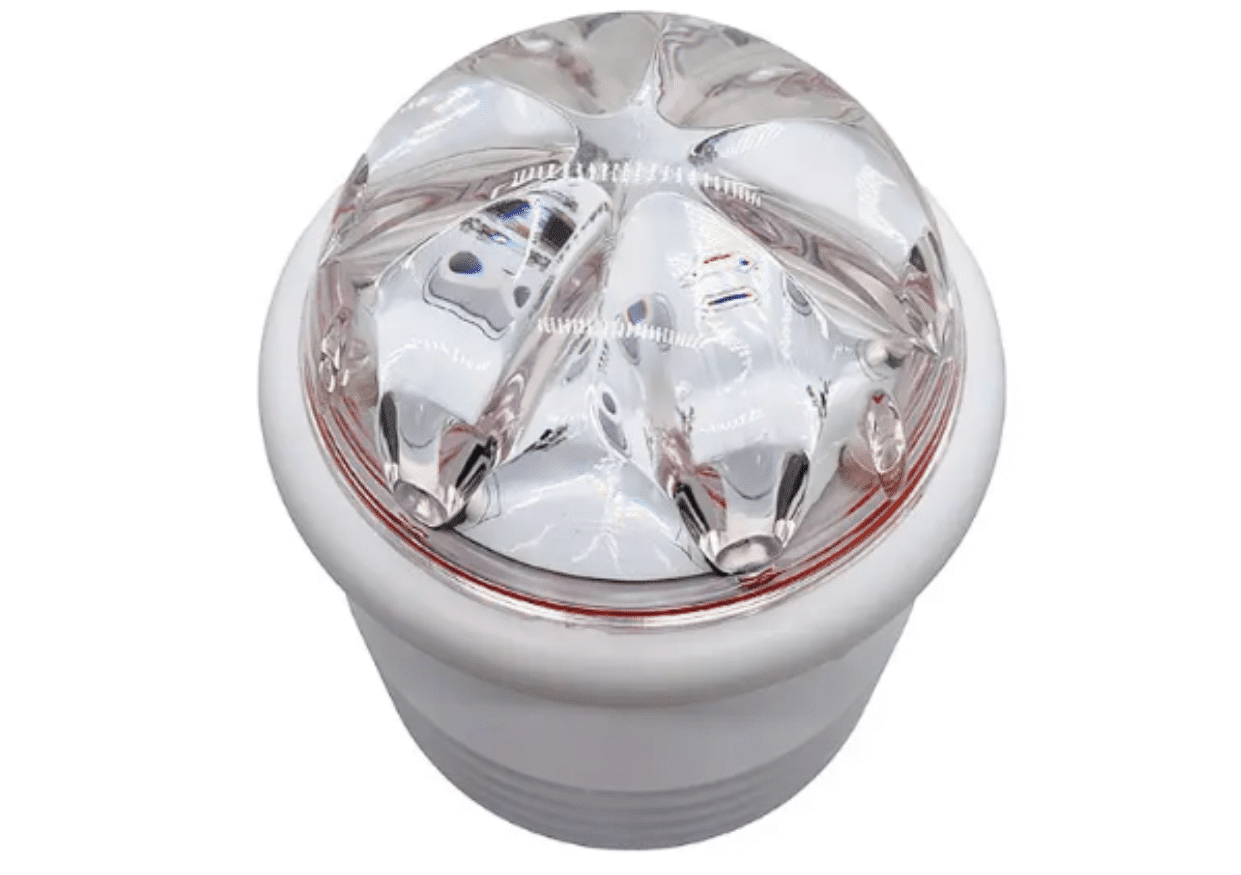

- High-Precision Optical Rain Sensor: Utilizes a sinusoidal infrared light source and a built-in narrow-band filter. The 78-square-centimeter rain-sensing surface delivers accurate rainfall measurements unaffected by strong sunlight or ambient light.
- Multi-Compatibility: The rain sensor supports additional optical sensors, including light, total radiation, and ultraviolet sensors.
Product Parameters
| Parameters Name | Water ORP sensor | ||
| Parameters | Measure Range | Resolution | Accuracy |
| Wind Speed | 0.70m/s | 0.01m/s | ±10.1m/s |
| Wind direction | 0-360° | 1° | ±2° |
| Air humidity | 0-100%RH | 0.1% RH | ±3%RH |
| Air temperature | -40~60°C | 0.01°C | ±0.3°C |
| Air pressure | 300-1100hpa | 0.1hPa | ±0.25% |
| Optical rainfall | 0.4mm/min | 0.01mm | ≤±4% |
| Illuminance | 0.20W LUX | 5% | |
Other parameters can be customized : UV sensor , global
radiation and light,etc.
Technical Parameter
Output Signal | RS485, MODBUS communication protocol |
| Sensor Power Consumption | 0.12W |
| Current | 10ma@DC12V |
Operating Voltage | DC12V |
Working Environment | -40~85°C, 0~100%RH |
| Material | ABS |
Protection Level | IP65 |
Wireless Transmission
| Wireless Transmission | LORA / LORAWAN (eu868mhz, 915mhz, 434mhz), GPRS, 4G, Wi-Fi |
Solar power System
| Solar panels | Can be customized |
| Solar controller | Can provide matched controller |
| Mounting Brackets | Can provide matched brackets |
Send free cloud server and software
| Cloud server | Cloud server is bind up with wireless module |
| Software | 1. The real time data can be seen in the software 2. the alarm can be set according to your requirement 3. The data can be download from the software |
| Parameters Name | Water ORP sensor | |
| Parameters | Measure Range | Resolution |
| Wind Speed | 0.70m/s | 0.01m/s |
| Wind direction | 0-360° | 1° |
| Air humidity | 0-100%RH | 0.1% RH |
| Air temperature | -40~60°C | 0.01°C |
| Air pressure | 300-1100hpa | 0.1hPa |
| Optical rainfall | 0.4mm/min | 0.01mm |
| Illuminance | 0.20W LUX | |
Other parameters can be customized : UV sensor , global
radiation and light,etc.
Technical Parameter
Output Signal | RS485, MODBUS communication protocol |
| Sensor Power Consumption | 0.12W |
| Current | 10ma@DC12V |
Operating Voltage | DC12V |
Working Environment | -40~85°C, 0~100%RH |
| Material | ABS |
Protection Level | IP65 |
Wireless Transmission
| Wireless Transmission | LORA / LORAWAN (eu868mhz, 915mhz, 434mhz), GPRS, 4G, Wi-Fi |
Solar power System
| Solar panels | Can be customized |
| Solar controller | Can provide matched controller |
| Mounting Brackets | Can provide matched brackets |
Send free cloud server and software
| Cloud server | Cloud server is bind up with wireless module |
| Software | 1. The real time data can be seen in the software 2. the alarm can be set according to your requirement 3. The data can be download from the software |
Product Usage
Step-by-Step Installation Process:
Choose Installation Site:
Select a location with minimal interference, stable environmental conditions, and exposure to weather elements. Ensure easy access for maintenance.
Mount the Sensor:
Secure the sensor using the provided brackets, ensuring proper positioning for accurate measurements and full exposure to the elements.
Connect Power Supply:
Attach the required power source (AC, DC, or solar) to the weather station, operating on DC12V or solar power options.
- Wire Communication Interface:
Connect the sensor to the data system using RS485 (MODBUS) or optional interfaces like RS232, USB, or Ethernet.
- Set Up Wireless Transmission (Optional):
If needed, configure the wireless module (LORA, GPRS, 4G, or Wi-Fi) for data transfer based on the required frequency.
- Calibrate and Test:
Calibrate the sensor, connect to the cloud server and software, and test for accurate data transmission and functionality. Set alarms and download data as needed.
Product Advantage
High Precision
Utilizes a sinusoidal infrared light source and a built-in narrow-band filter.
Cost-Efficient
Combines low power consumption and high-performance solution at an affordable price.
Durable
Wireless Connectivity
Product Applications
Agriculture Monitoring
The weather station tracks temperature, humidity, rainfall, and soil moisture, enabling farmers to optimize irrigation and improve crop management for better yields.
Construction Sites
On construction sites, the station monitors weather conditions like wind speed and rain, ensuring worker safety and guiding scheduling decisions based on weather forecasts.
Urban Planning
City planners use weather stations to gather environmental data for improving urban design, resource management, and enhancing the quality of life in urban spaces.
Renewable Energy
The weather station helps wind and solar farms optimize energy production by monitoring wind speed and solar radiation, ensuring efficient energy harvesting.
